Tire Climbing Tower

Our kids love to play outside. Two few years ago we built a new clubhouse and last year we added a swing set to our outdoor playground.

This year my husband wanted to build something the kids could climb on. He had come up with an idea that used tires but he wasn’t having much luck finding some.

Well, last week we had new tires put on our truck which meant we finally had some tires. This weekend we all worked together to build a tire climbing tower.

Tire Climbing Tower

Our boys have loved climbing in, out, over, and under their new tire tower.

Tire Climbing Tower 2

The top of the tower is 8 feet off the ground which is pretty high but it is very sturdy.

I think this idea would work with even just 2 or 3 tires if the height was a concern but you wanted to make something similar.

Tire Climbing Tower 4

The tires are attached to three treated 4″ x 4″ x 10′ posts with lag screws. The posts are in the ground 2 feet and one of the posts is attached to our swing set.

Tire Climbing Tower 5

When my husband builds something he makes sure it is sturdy.

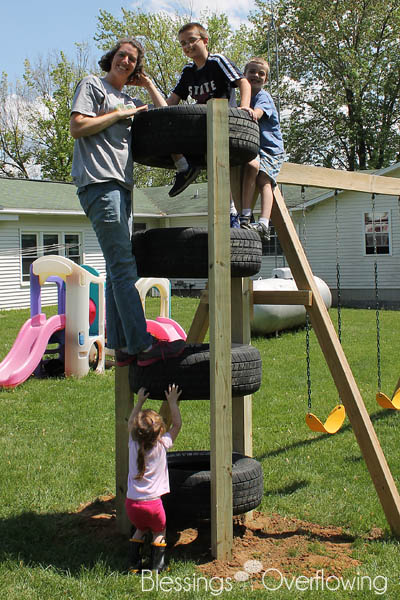

Tire Climbing Tower 3

Obviously. ;)

The tire climbing tower is definitely a fun addition to our playground and is helping our kids gross motor development.

For those of you wanting more details on exactly how we built the tire tower, here are the materials you will need and how we built it.

Tire Climbing Tower

Supplies

  • (4)Tires (The tires pictured are 17 inch truck tires.)
  • (3) 4 inch x 4 inch x 10 foot Treated Posts
  • (24) 3 inch x 1/4 inch Lag Screws
  • (24) Washers
  • Drill
  • 3/16 inch Drill Bit
  • Socket Bit
  • Tape Measurer
  • Pencil
  • Shovel or Post Hole Digger
  • Level

Instructions

1. Attach one tire to the top of one post by first drilling two pilot holes (through the tire and wood) with the drill bit and then using the socket bit to attach two lag screws and washers. The top of the tire should to be flush with the top of the post.

2. Make a mark on the post 16 inches below the bottom of the first tire. Use that measurement to line up the second tire so that the top of the tire is even with the mark.

3. Attach the second tire to the post using the same method as in step 1.

4. Repeat step 2 two more times for the other two tires.

5. To make the process easier for the two remaining posts, make marks on the posts at the same intervals you did for the first post. Use a tape measurer to help determine the exact measurements.

6. You will be forming an equilateral triangle with the three posts so you will want to determine how far apart to space the two remaining posts so that the space in between each post is the same.

7. Attach the tires to the remaining two posts in the same manner you attached the first post. First drill two pilot holes and then using the socket bit to attach the lag screws and washers.

Note: I recommend attaching all of the tires to the posts while the posts are lying on the ground. They are very heavy and tall which would make it too hard to assemble vertically.

8. Decide where you want your tire tower and dig three holes that are 2 feet deep. Use a tape measurer to be certain the holes are equal in depth or the tower will be crooked.

9. Turn the tire tower so that it is vertical and set the posts in to the holes. (This is a multiple person job. It is heavy!)

10. Use a level to check to make sure the tower is level.

11. Fill in the holes with dirt. Make sure the holes are packed tight because you don’t want the tower to sway when kids get on it.

12. Optional: Attach one of the posts to something else like a wooden playground set or swing set. You could also fill in the holes the posts are in with concrete.

If anything doesn’t make sense please let me know. I am used to writing craft tutorials, not woodworking tutorials. :)
